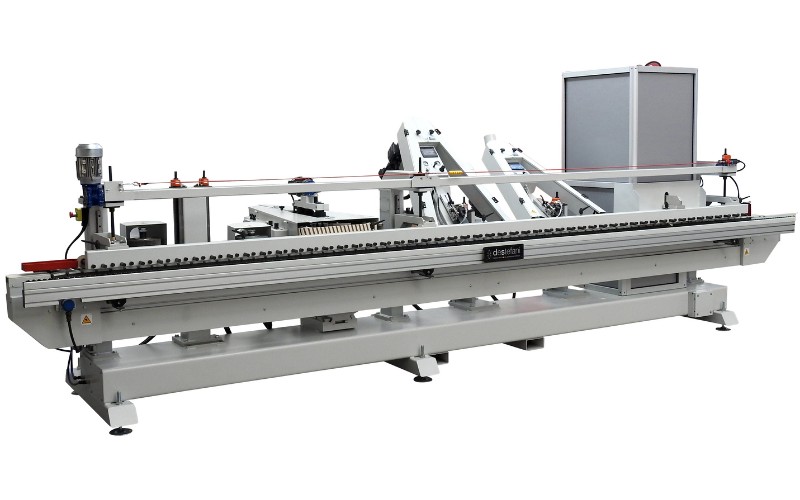

MVT 5000 (2TPL-F+2AT+1SB)” is an automatic single-sided machine ideal for milling and sanding edges of solid wood panels, Mdf, chipboard, coated or treated with polyurethane paints and polyesters, designed to process various furniture products: doors, kitchen cabinet fronts, shutters and any product requiring high quality milling and sanding.
In addition to two “AT” belt sanding units and the Scotch Brite “SB” unit, the “MVT 5000 (2TPLF+2AT+1SB)” features two profiling units with a “TPL-F” shaped tool – equipped with a soundproof protective booth – designed for profiling or grooving the edge of the panel being machined.
TECHNICAL DATA
Workable sides: 1.
Minimum part length: 200mm.
Minimum part width: 70mm.
Maximum part thickness: 100mm.
Processing speed: from 5 to 25 m/min.
Conveyor motor power: 3kW.
Worktop height: 900mm.
Total installed power: 23kW.
Voltage: 400V.
Machine length: 6,325mm.
Machine width: 1,620mm.
Machine height: 1,960mm.
Part infeed-outfeed: manual.
